From the Scratch

This section provides detailed steps on planning a project from the scratch by adding rooms, walls, separators, sloped ceilings and exteriors.



Add a Room

You can add rooms to your project.
Steps to add a room:

1. Click Floor plan > Add a room.

2. Enter the surface area, room type.

3. Select the room shape, click Add.
   Room Selection:


4. Position the room.
   To add another room, click Add a new room, repeat from step 2.
   Room Position:


5. Click Validate.
   Rooms are added to the project.

Move and Rotate Room

You can move and rotate the room in 2D view.

1. Select the room floor in the 2D view, the options are displayed as shown below:

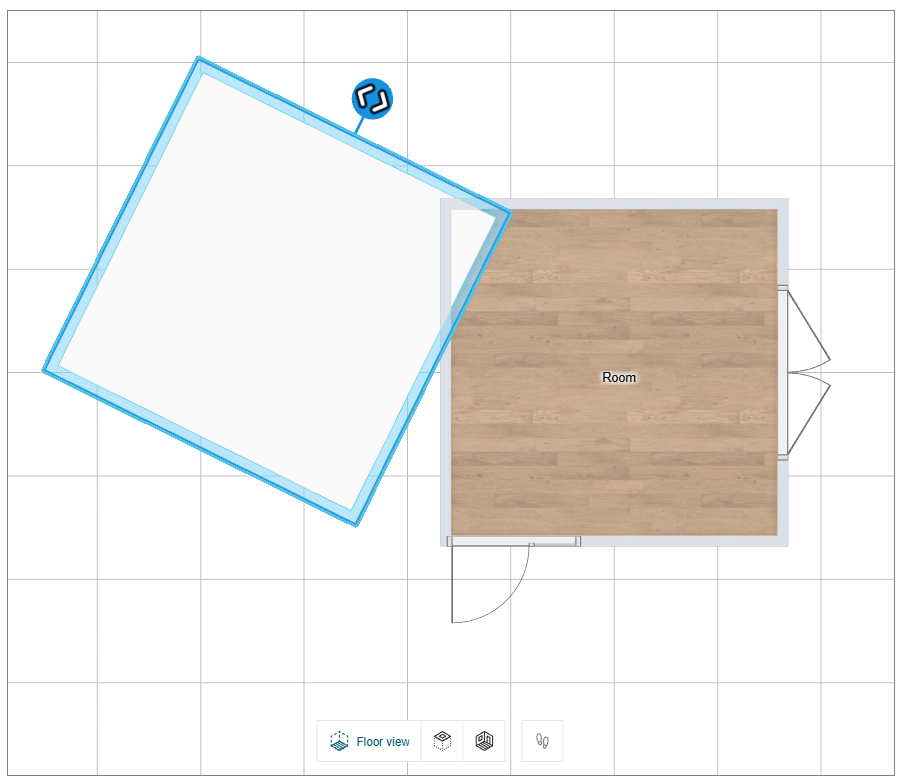

2. Click the Move button, the manipulator to rotate the room is displayed, as shown below:

3. Select the manipulate to rotate the room in clockwise or anti-clockwise.

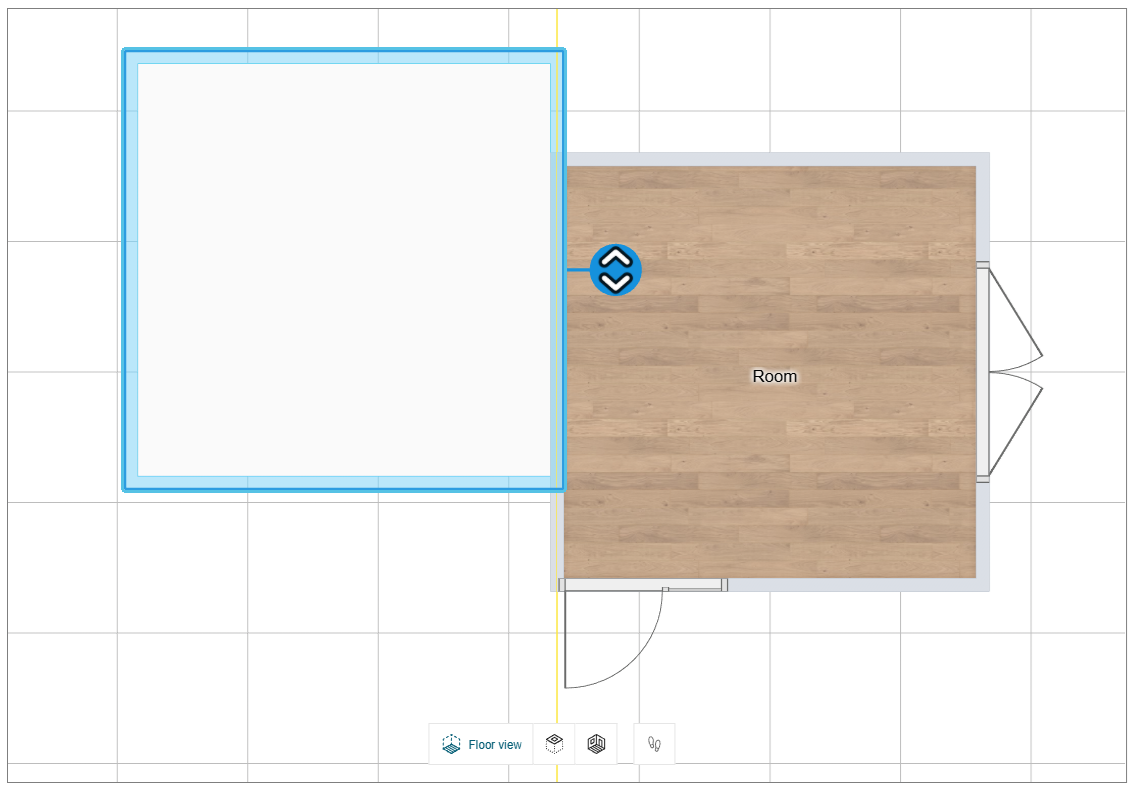

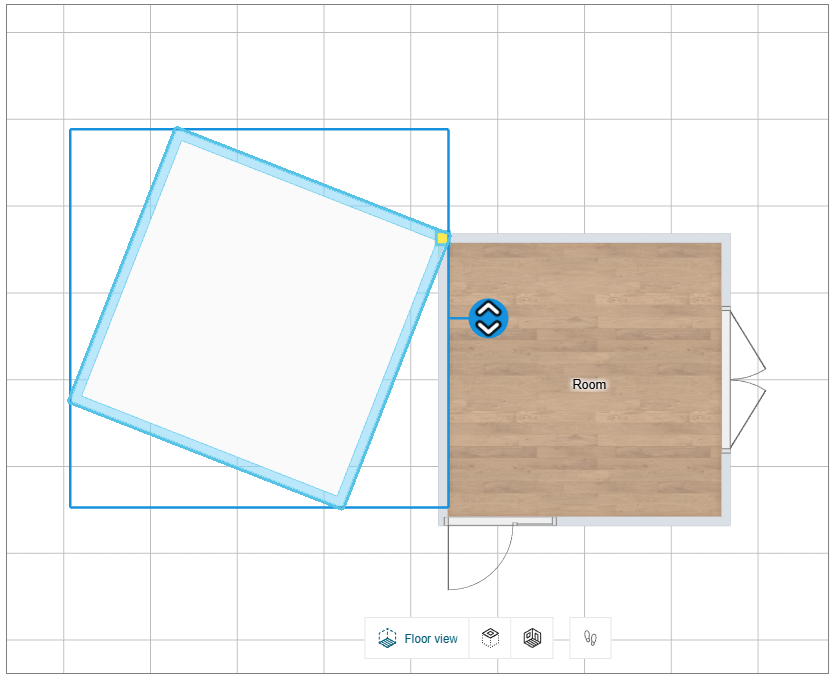

4. Select and drag the floor to move the room, as shown below:

Use a measuring code

You can use a measuring code to add a room.

1. Click the Floor plan > Use a measure code option.
   Select the required .json format file from the folder.
   A popup message to notify Your measurements have been imported appears, as shown below:

The existing project has been updated accordingly and the room products are not positioned after importing the measurement code.
You have to manually drag and drop the products to position them inside the room.

2. To position the products drag and drop the products inside the room.

The original room shape is updated based on the measurement been imported.

---

Angle Modification

This section describes how you can view and modify the angle between two walls in the floorplan step.

Viewing the Angle

1. Click on any wall in the 2D view.

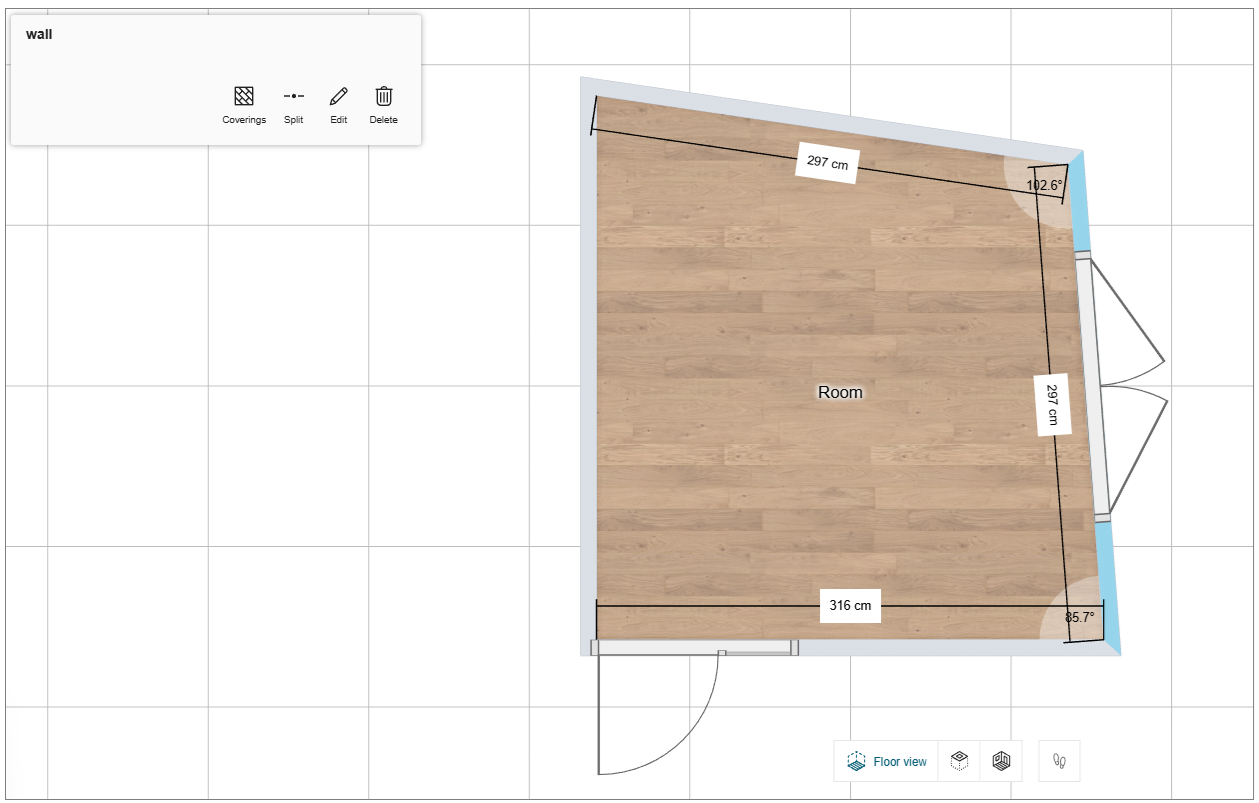

   The angle value is displayed, as shown below:

2. If the wall is perpendicular (90°), a perpendicular icon appears next to the angle value, as shown below:

Modifying the Angle Value

1. Click the angle value twice.

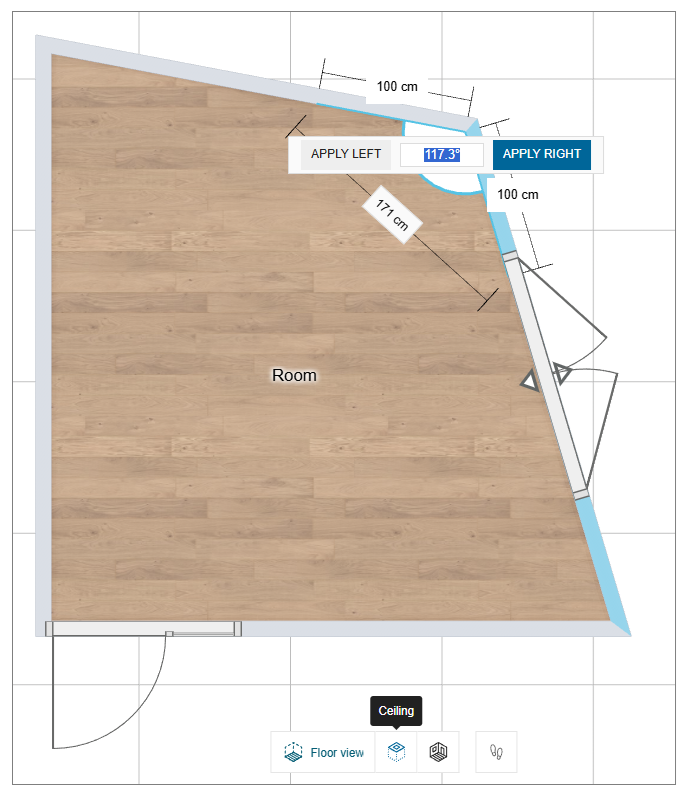

   • The UI switches to angle‑edit mode, as shown below:

2. Two buttons appear: Apply Left and Apply Right.

   • The current angle value is pre‑filled in the input field.

3. Edit the value and press Enter or click the desired Apply button.

   • The angle is applied to the selected side (left/right).

Validation & Error Handling

• Pressing Enter stores the new angle and updates the room geometry instantly.
• If the entered value is invalid (e.g., 36000), the system reverts to the previous valid angle without showing an error message.

Quick Reference

Action	UI Element	Result
Click wall	Angle value + optional perpendicular icon	Shows angle
Click angle value	“Apply Left / Apply Right” buttons + input	Enters edit mode
Press Enter	–	Saves angle (default side based on context)
Invalid input	–	Reverts to previous angle, no error popup

---

Rename room

You can modify the room, room type, modify the floor height and empty room.

1. Click the room floor, the property panel is displayed, as shown below:

2. Click the Edit option, the edit panel is displayed, as shown below:

• Name- Select the room name and modify the required name of the room.

• Type- Select the room type from the drop-down menu, as shown below:

• Floor height- To modify the height of the floor in the same room or different rooms:

1. Select the value of the floor height and modify the required floor height, and a success message displays, as shown below:

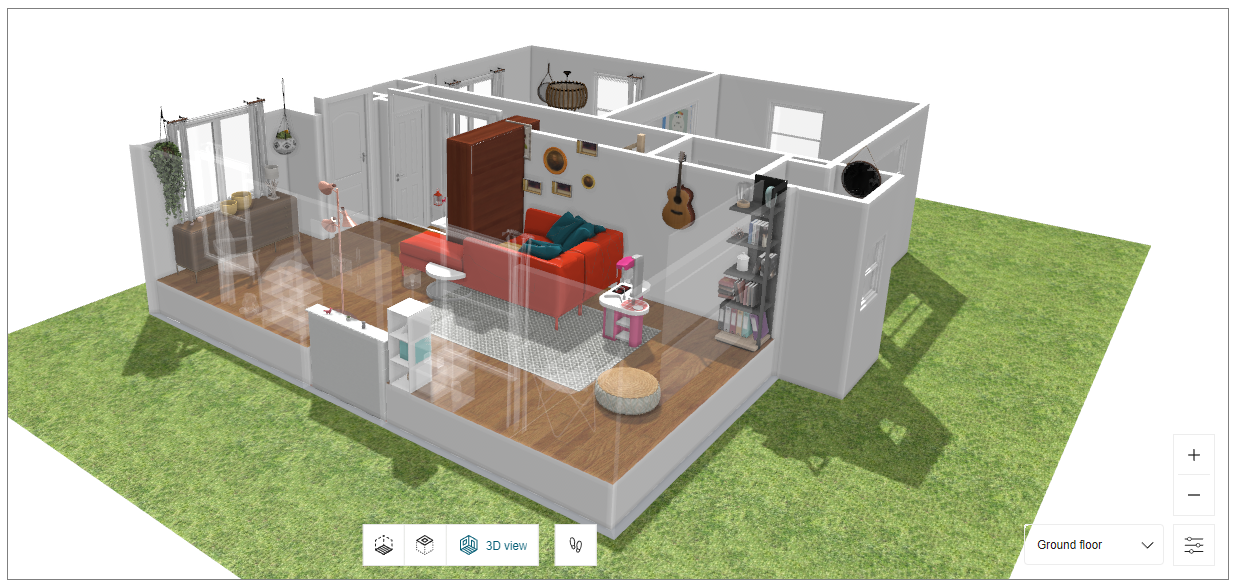

2. To check the applied floor height, click the See how it looks from the pop-up message. The applied floor height is displayed, as shown below:

Floor and Ceiling Opening

You can add a floor and ceiling opening to the room.

1. Click the Floor plan > Add a separation.

2. Draw the required area for opening using sketcher, as shown below:

3. Click the Validate button.

4. Select the separator area for the opening and click the Edit button, as shown below:

• Ceiling Opening - You can add the ceiling opening to the room.

1. Click the check box of Ceiling Opening, as shown below:

2. The applied ceiling opening is displayed, as shown below:

• Floor Opening - You can add the floor opening to the room.

1. Click the check box of Floor Opening, as shown below:

2. The applied floor opening is displayed, as shown below:

Navigation Panel

You can switch the room view to Floor view, Ceiling view, 3D view, or First person view.

Floor view:

• Click the icon in the navigation panel. The floor view is displayed, as shown below:

3D view:

• Click the icon in the navigation panel. The 3D view is displayed, as shown below:

Ceiling view:

• Click the icon in the navigation panel. The front view is displayed, as shown below:

First person view

• Click the icon in the navigation panel. The First person view is displayed, as shown below:

The First person view option is disabled in 2D view and becomes active only when switched to 3D view or ceiling view.

Empty room

You can empty the room by deleting all the products from the room at once.
In 2D view, select the room floor, the property panel is displayed, as shown below:

1. Click the icon, a notification for confirmation appears, as shown below:

2. Click the Yes option to continue.

You can undo the action by clicking the Undo button.

Add a Wall

You can add walls to your project.
Steps to add a wall:

1. Click Floor plan > Add a wall.

2. Draw wall with the help of sketcher.
   Add Walls:


   Feature	Icon	Command	Command Location
   Sketcher		Helps in drawing walls	Floor plan

3. Click Validate. Walls are added to the project.

Add a Separation

You can add room separations to your project.
Steps to add a room separator:

1. Click Floor plan > Add a separation.

2. Draw separator with the help of sketcher.
   Add Separators:


   Feature	Icon	Command	Command Location
   Sketcher		Helps in drawing separators	Floor plan

3. Click Validate.
   Room separators are added to the project.

Modifying the Wall Dimension

The dimensions of the walls can be modified by dragging the wall or by specifying the required dimension.
To modify the dimension of the wall in the planner:

• Select the wall, click the dimension of the wall, as shown below:

• Modify the dimension value of the wall, click APPLY LEFT or APPLY RIGHT button as required.
  Selecting the appropriate button changes the length of the wall in the respective direction.
  If you press the Enter key or click the blank space in the planner, by default the change in the dimension is applied in the direction of the button highlighted in blue color. In the above image, it is APPLY LEFT.

• If you select the vertical wall/ slanting wall, the APPLY ABOVE and APPLY BELOW appears to modify the wall dimension.

If the two adjacent walls of the room are joint at a perpendicular angle (i.e. 90 degree), then a square symbol is displayed, as shown above.
For non-perpendicular angles, the angle value is displayed.

Openings

This section explains the steps to add the openings (like Door, Window, and Roof window) to the room in the floorplan.

• Click the icon, the list of categories & sub-categories of openings are displayed, as shown below:

You can add a door/window by clicking the desired category.

For example:

1. Click the Double windows. The list of double windows appears, as shown below:

2. Select the Double window from the catalog, the window is added to the wall, as shown below:

You can move the window to the desired position by dragging it or by editing the measurement that is displayed after selecting it, as shown below:

Similarly, you can add other types of openings like different types of doors, windows, or roof windows.

• The openings width can also be modified by selecting the product and editing the dimensions.
• You can also add the Openings to the room by drag and drop them from the catalog.

Edit Door / Window Properties

You can Edit door/windows in 2D/3D view.

• Click the door/window to open the Edit toolbar in 2D/3D view, as shown below:

To edit the properties of window/door:
Click the Edit option, the properties panel appears, as shown below:

You can also resize the openings in 2D view by dragging the end points of the opening, as shown below:

Option	Function
Edit	Lists editing options.
Duplicate	Duplicates the selected opening and adds it to the room wall.
Open	Open/Close the openings.
Delete	Deletes the selected opening.
Information	Shows dimension information about the product.

Options: Shows the options available for the opening selected.
Replace: You can replace the product/material using this button.
Dimensions: The width, height of the window can be edited.
Position: Height from the floor, wall side (opening of window-inner/outer side), can be edited.
Additional options: For bay products, you can add additional dimension parameters according to your needs.

• The option available in the edit properties window can change depending on the type of opening selected.
• You cannot move or duplicate the door/window in 3D View.
• The Open/Close option is available in 3D view only.

---

Wall Mouldings

Adding Wall Moulding

You can add the mouldings to the wall.

1. Select the wall on which you want to add the moulding, as shown below:

2. Click the Edit button, the different types of moulding options are displayed, as shown below:

You can add Cornice, Picture rail, and Baseboard type of mouldings.

Cornice

You can add the cornice moulding to the wall.

1. Click the Add button of Cornice option, and the catalog of cornice moulding are displayed, as shown below:

2. Select the required cornice moulding from the catalog, the applied moulding is displayed, as shown below:

Picture rail

You can add the picture rail moulding to the wall.

1. Click the Add button of Picture rail option, and the catalog of picture rail moulding are displayed, as shown below:

2. Select the required picture rail moulding from the catalog, the applied moulding is displayed, as shown below:

Baseboard

You can add the baseboard moulding to the wall.

1. Click the Add button of Baseboard option, and the catalog of baseboard moulding are displayed, as shown below:

2. Select the required picture rail moulding from the catalog, the applied moulding is displayed, as shown below:

Edit Wall Moulding

1. Select the wall and click the Options button, as shown below:

2. The Options panel is displayed, as shown below:

3. Click the Add button of the Add Material option to apply the material to the moulding.
   The material catalog is displayed, as shown below:

4. The applied material to the moulding is displayed, as shown below:

You can edit/modify the dimensions of the mouldings, as shown below:

To apply the moulding to the whole room:

Click the Apply button of the Apply to whole room.
The applied moulding is displayed, as shown below:

Replace Wall Moulding

1. Click the Replace button to replace the wall moulding.
   The replaceable moulding catalog is displayed, as shown below:

2. Select the moulding from the catalog to replace the wall moulding.

Delete Wall Moulding

1. Click the Delete button to delete the wall moulding.

Niche

You can add a Niche into a wall to create a recessed space for fixtures, decorative items, kitchen accessories, etc in 2D/3D view.

1. Select the wall in the 2D/3D view.

2. Click the Edit button, the Wall options are displayed, as shown below:

3. Click the Add button of the Niche option, the niche products catalog is displayed, as shown below:

4. Select the required niche product from the catalog, the applied niche is displayed, as shown below:

Replace Niche

1. Click the Replace button, to replace the niche product.

The Replace niche catalog is displayed, as shown below:

2. Select the product from the catalog to replace the niche product.

Edit Niche Parameters (2D & 3D)

You can edit the niche parameters in 2D and 3D views.

1. Select the niche in the 2D/3D view, the property window is displayed, as shown below:

2. Click the Edit button, the niche parameters are displayed, as shown below:

3. Select the dimension value of the Niche product, and modify the required dimension.

Manage Sloped Ceilings

You can add sloped ceilings to your project.
Steps to add a sloped ceiling:

1. Click Floor plan > Manage sloped ceilings.

2. Select a wall.

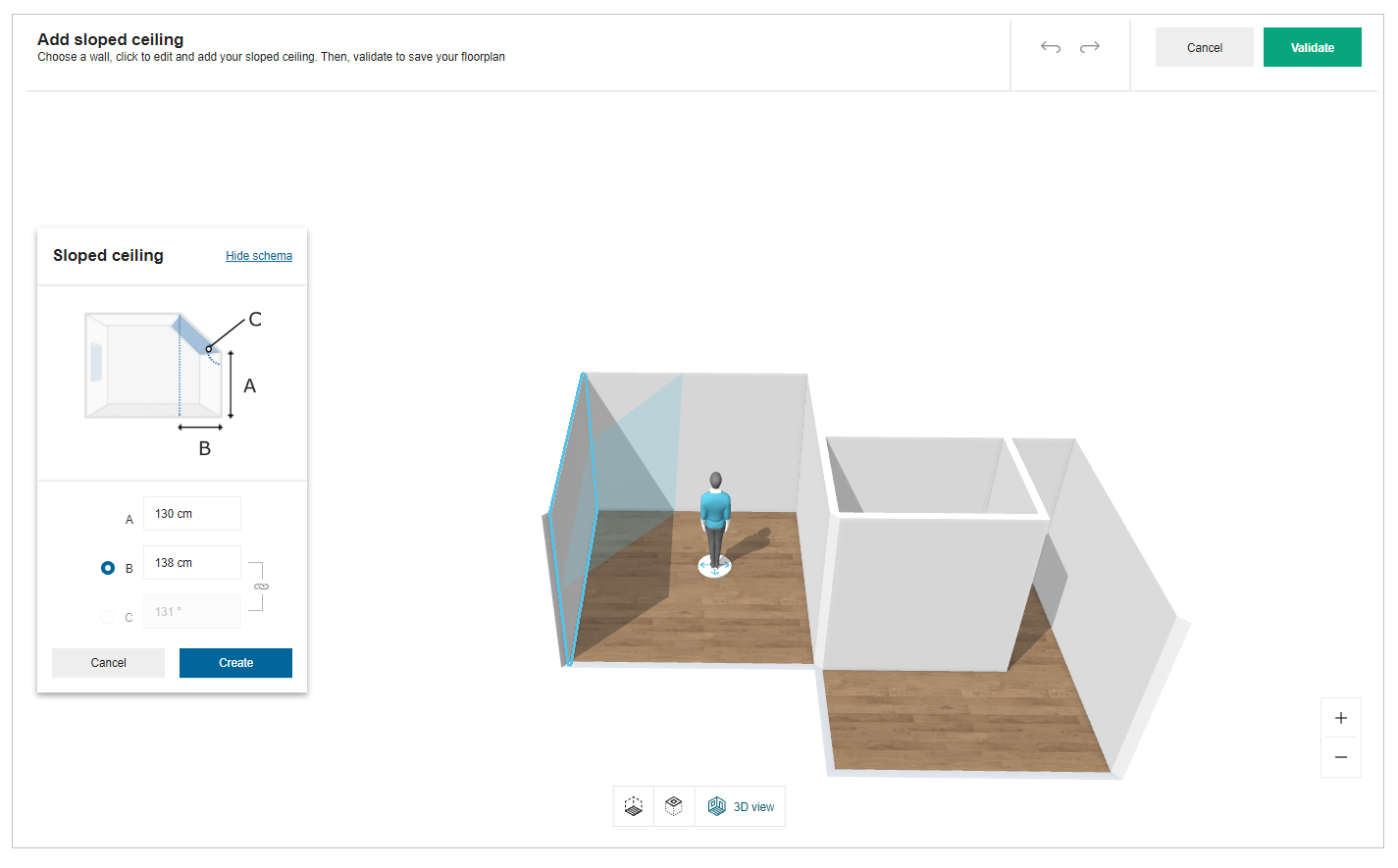

3. Enter the height (A), incline distance (B) and angle of inclination (C), and click Create.
   Click Hide schema/Show schema to hide/show the illustration.

4. Click Create.
   To add another sloped ceiling, repeat from step 2.
   Add Sloped Ceiling:


5. Click Validate.
   Sloped ceilings are added to the project.

Add Roof Window

You can add roof window on sloped ceiling in your project.

1. Click Build > Roof windows.
2. Select Roof window from list in catalog.

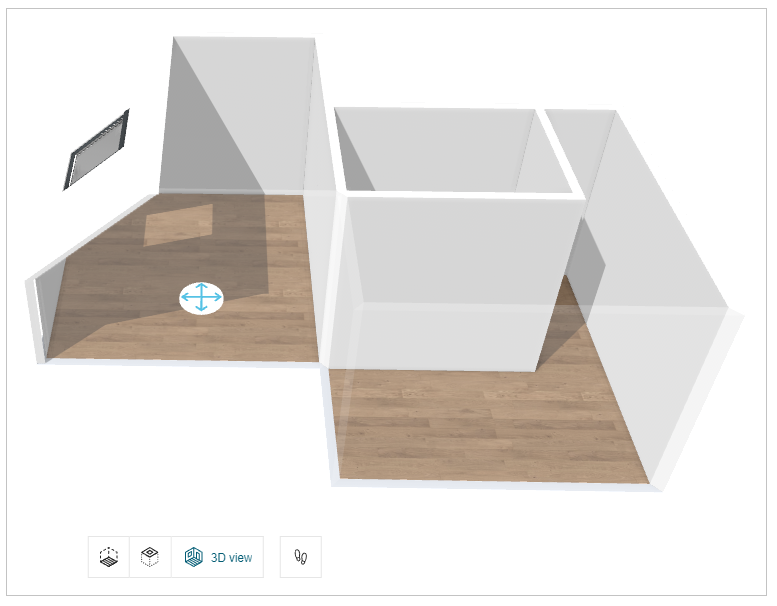

3. Roof window is added on sloped ceiling.


Note:

1. Roof window is removed from floorplan if corresponding sloped ceiling is removed.
2. No space available message displayed if sloped ceiling is too small to fit the roof window. In this case, roof window is added in the middle of the screen. You can move it to desired location.
3. Following pop-up notification displayed, if sloped wall is not available in floorplan.
   You cannot add a roof window without a sloped ceiling. Add a sloped ceiling.
   Click Add a sloped ceiling link to add sloped ceiling.

Coverings

⚙️ Set up: Set Up Coverings 🔗 and CoveringRule 🔗
For more information, please refer Bill of Material Reference🔗
⚙️ Set up: Application distribution parameter sortBy🔗 and filters🔗

This section explains the steps to add coverings on the walls, floors and free shapes.
You can add the coverings in 3D view.

• Select the wall in the 3D view, the property window is displayed, as shown below:

1. Click the Edit option.
   The Options are displayed, as shown below:

2. Click the Replace button of options.
   The coverings catalog is displayed, as shown below:

You can add floor coverings by selecting the room floor in 3D view.

• Select the floor in 3D view, the panel is displayed, as shown:

1. Click the Edit button, the panel is displayed, as shown below:

2. Click the Replace button of options.
   The coverings catalog is displayed, as shown below:

Select the option to sort the material, as shown below:
You can sort the materials using:

• Name.
• Product Rank.
• Start Date.

3. Click the All filters option, to filter the materials, as shown below:

Type
You can select the covering type from the catalog, as shown below:

Type	Function	Description
All	all coverings	Shows every covering type
Matt	matt	Matt paint finishes
Satin	satin	Satin paint finishes
Patterned wallpaper	patterned wallpaper	Patterned wallpaper finishes
Plain wallpaper	plain wallpaper	Plain wallpaper finishes
Children's wallpaper	children wallpaper	Children's wallpaper finishes
Kitchen & Bathroom wallpaper	kitchen bathroom wallpaper	Kitchen and bathroom wallpaper finishes
Wainscot	wainscot	Wainscot coverings
Natural	natural	Natural surface finishes
Plain	plain	Plain surface finishes
Patterned	patterned	Patterned surface finishes
Brick	brick	Brick surfaces
Concrete	concrete	Concrete surfaces
Grass	grass	Grass surfaces

• To add coverings on free shapes:

1. Select the product, the property window is displayed, as shown below:

2. Click the Coverings option, the coverings catalog is displayed, as shown below:

The coverings can be added by using one of the following methods:

1. Apply to all option applies covering to all walls and free shapes.
2. Apply to selection option applies covering to selected floor, wall or free shapes.

• Last used material
  The materials which are applied to the wall, floor or free shapes are displayed in the Last used list, as shown below:

The last used material can be applied by selecting the wall, floor or free shape and clicking the required material from the list.

---

Customize Surface

You can customize the covering surface.

1. In the 3D view click the Coverings options, the edit wall window is displayed, as shown below:

2. Click the Edit button, the customize surface option is displayed, as shown below:

3. Click the Customize surface button, the Customize surface window is displayed, as shown below:

Edit Surface

• Select the surface, the Options window is displayed, as shown below:

Split
You can split the covering surface in horizontal and vertical direction.

To split the surface in horizontal direction:

• Click the ADD button of the Add horizontal split option.
  The horizontal split surface is displayed, as shown below:

• Click the ADD button of the Add vertical split option.
  The vertical split surface is displayed, as shown below:

You can drag and drop to adjust the size and position of the horizontal and vertical splits, as shown below:

Edit coverings options
You can edit the coverings.

To edit the coverings surface:

1. Click the EDIT button of the Edit coverings options.
   The Edit coverings options panel is displayed, as shown below:

2. Click the rotate icon, to rotate the surface in anti clockwise or clockwise direction respectively.
   The covering surface is displayed after rotating the surface, as shown below:

Translate Covering Surface
You can move the covering surface in horizontal and vertical direction.

1. Click in the input box to enter the value, as shown below:

2. You can also toggle left/right side to move the covering surface in horizontal/vertical direction.

3. Click the reset icon, to reset the modified values.

The minimum and maximum value to move the surface horizontally and vertically is -100% and 100% respectively.

Change coverings

• Click the CHANGE button of the Change coverings option.
  The coverings catalog is displayed, as shown below:

Select the required material from the catalog to apply.

You can select multiple faces and apply or change the covering material to the walls/floors.

1. Select the Ctrl button and click the multiple face.
   The option to change the material is displayed, as shown below:

2. Click the CHANGE button. The covering catalog is displayed, as shown below:

3. Select the required material from the catalog to apply.

Undo/Redo

• To undo the previous action, click the icon.
• To redo an action, click the icon.

4. Select the Next view/previous view option to preview the covering surfaces.

5. Click the Validate button once the covering surface is customized accordingly.

---

Add an Exterior

You can add exterior design to your project.

1. Click the Floor plan > Add an exterior.
   The exterior materials are displayed, as shown below:

2. Modify the surface area according to your need and select the exterior type.

3. Click the Add button, the window to adjust the exterior is displayed, as shown below:
   You can drag and place the exterior.

4. Position the exterior.
   To add another exterior material, click the Add a new exterior, repeat from step 2.

5. Click the Validate button.
   Exteriors are added to the project.

Edit Exterior

You can edit the exterior design in your project.

• Select the exterior material in 2D view, the edit panel is displayed, as shown below:

Coverings

You can change the covering material of the exterior.

1. Click the Coverings option, the available covering materials are displayed, as shown below:

2. Select the covering material from the catalog to apply the material.

Edit

You can edit the name of the exterior material.

1. Click the Edit button, the option to modify the name of the exterior material, as shown below:

2.To modify the exterior name, select the name in the input box.

Delete

You can delete the exterior material from your project.

Empty

You can empty the products from the exterior material.

1. Select the Empty button, the Empty the exterior pop up window appears, as shown below:

2. Click the Yes button to empty the exterior.

Split

You can split the exterior material into two parts.

1. Select the edge of the exterior material, the options to split the exterior is displayed, as shown below:

2. Click the Split option, the split exterior material is displayed, as shown below:
   You can select and drag the split part accordingly.
