Home Planner iFrame Messages

iFrame messages support the communication between the planner and the embeding Website to provide openness and integration. This section describes iFrame messages that are listen by the planner (input) to react to parent window actions or emitted by the planner (output) to enable parent window to react.

IFrame Communication Introduction

To have an overview of the subject, we advise you to read window.postMessage documentation on the web.

➡️ Refer to PostMessage documentation 🔗

Every message received by the application or sent by the application through window.postMessage must be an object of this format:

Key	Type	Description
event	string	The event name is used as unique identifier for a given event.
content	*	Content sent with the event. It is optional and can be anything: integer, array, object...

Template

{
   event:"Login",
   content:
   {
      token:"dez2fre589e"
   }
}

Overview of Data Synchronization

According to different integration context, the iframe messages that the Home Retailer Planner subscribe/publish can be divided into three parts.

Website

When Home Retailer Application is embeded in the client's Website, possible data synchronization could be as following:

For...	Inputs Messages	Outputs Messages
Authentication	`Authentication` `TokenRefreshed` `Login`	`AuthenticationRequired`, `AuthenticationSucceeded`, `AuthenticationFailed`, `TokenExpired`, `LoginRequired`, `LoginSucceeded`, `LoginFailed`
Application	`SetUpSettings`	`Ready`, `CloseApp`, `MinimizeButtonClicked`
Load/Save Project	`LoadProject`	`InfoRequestedProject`,`InfoRequestedUser`,`SaveStarted`,`ProjectSavingSucceeded`, `ProjectSavingFailed`, `ProjectLoadingSucceeded`, `ProjectLoadingFailed`, `ProductListWithBOM`, `ProjectInfoRequested`, `ProjectInfoGenerated`
Share		`ShareMedia`, `ShareProduct`
Buying Experience		`AddToBasket`
Bill Of Material (BOM)		`BOMComputationReady`
Price	`ExternalPriceResponse`	`ExternalPriceRequested`
Help Center		`NeedHelpClicked`
Project Configurator Bridge	`ProjConf_ExternalPriceResponse`	`ProjConf_ExternalPriceRequested`, `ProjConf_PriceInfoButtonClicked`, `ProjConf_NeedHelpClicked`

Third-party Application

When a third-party application (like a furniture configurator or a project configurator) is embeded in the Home Retailer Application as an iframe, possible data synchronization could be as following:

For...	Inputs Messages	Outputs Messages
External Configurator	`Listening`, `ProductSaved`, `BadRequest`	`ConfigureProduct`, `BadResponse`
Project Configurator	`ConfigureProject`	`Listening`, `BadRequest`, `Canceled`, `ProjectSaved`

When a widget is embeded in the Home Retailer Application as an iframe, possible data synchronization could be as following:

For...	Inputs Messages	Outputs Messages
Print	`Listening`, `ClosePrintLayer`	`OpenPrintLayer`, `PrintButtonClicked`
Product Sheet	`Listening`, `AddProduct`, `CloseProductSheet`, `ShareProductByOption`, `AddToFavorite`, `ProductClicked`, `ShowPreviousProduct`, `ConfigureProduct`	`OpenProductSheet`
Project Overview	`CloseProjectOverview`, `Listening`, `AddToBasket`, `FormattedPricesRequested`, `ShareMedia`, `DeleteMedia`, `OpenPrint`	`OpenProjectOverview`, `FormattedPrices`

Authentication

AuthenticationRequired

Output emitted when the application requests authentication parameters. Upon this request, the parent window must reply with an Authentication message.

Key	Type	Value/Template	Description
event	string	AuthenticationRequired	–
content	–	–	–

Authentication

Input received when authentication is requested by the message AuthenticationRequired, the parent window must reply with the following message.

Key	Type	Value	Description
event	string	Authentication	–
content	object	`token` `distributionID`	`token`: The legal entity token generated by the client website. `distributionID`: The specific distribution in the legal entity.

Template

{
 "token": string
 "distributionID": string
}

AuthenticationSucceeded

Output emitted by the application to acknowledge that authentication is successful.

Key	Type	Value/Template	Description
event	string	AuthenticationSucceeded	–
content	object	`origin` `appID` `distributionID` `distributionParams`	`origin`: The domain from which the message originated. `appID`: The application ID associated with the provided credentials. `distributionID`: The distribution ID associated with the provided credentials. `distributionParams`: The distribution-specific parameters, if any, of the distribution associated with the provided credentials.

Template

{
    "origin": string,
    "appID": string,
    "distributionID": string,
    "distributionParams": object
}

AuthenticationFailed

Output emitted by the application to inform that authentication has failed.

Key	Type	Value/Template	Description
event	string	AuthenticationFailed	–
content	object	`httpCode` `id` `message`	`httpCode`: The HTTP error code for the request. `id`: The error id `message`: The detailed error message.

Template

{
    "httpCode": HttpErrorCode,
    "id": string,
    "message": string
}

TokenExpired

Output emitted and sent to the parent window when a token is expired, subsequent calls to the web-services will fail with a 401 error.

Key	Type	Value/Template	Description
event	string	TokenExpired	–
content	object	null	–

TokenRefreshed

Input received from the parent window. This message is send by the parent window when receiving TokenExpired. This message provides a new valid token to the application to authentify subsequent calls to web services.

Key	Type	Value	Description
event	string	TokenRefreshed	–
content	object	`token` `distributionID`	`token`: The legal entity token generated by the client website. `distributionID`: The specific distribution in the legal entity.

Template

{
 "token": string,
 "distributionID": string
}

LoginRequired

Output emitted when an action requires a logged user and none is currently logged in the application, this message will be sent.

Key	Type	Value/Template	Description
event	string	LoginRequired	–
content	–	–	–

Input received from the parent window when the user has successfully logged in and the user token is generated.

Key	Type	Value/Template	Description
event	string	Login	–
content	object	`token`: string	`token`: Token generated by client website.

LoginSucceeded

Output emitted when the application succeeded to log in the user (from a token for example), it will send this message.

Key	Type	Value/Template	Description
event	string	LoginSucceeded	–
content	–	–	–

LoginFailed

Output emitted when the application failed to log in the user (from a token for example), it will send this message.

Key	Type	Value/Template	Description
event	string	LoginFailed	–
content	–	–	–

Application

Ready

Output emitted by the planner. The application needs some time to be ready to listen to messages. Listen to this message and ensure that it has been emitted before sending any other iFrame message.

Key	Type	Value/Template	Description
event	string	Ready	–
content	–	–	–

SetUpSettings

Input request to set up a few information for the planner.

This message has to contain information for the planner project name to display. It must be a JSON object as described below.

Key	Type	Value/Template	Description
event	string	SetUpSettings	–
content	object	`projectName`	`projectName` (optional): String to provide project name and disable the save project popin.

Template

{
  "projectName": "TestUser"
}

CloseApp

Output emitted when the user clicks on the cross button to close the application.

Key	Type	Value/Template	Description
event	string	CloseApp	–
content	–	–	–

MinimizeButtonClicked

Output emitted when the user clicks on the minimize button to minimize the application.

Key	Type	Value/Template	Description
event	string	MinimizeButtonClicked	–
content	–	–	–

Load/Save Project

LoadProject

For performance reasons, it is recommended if applicable, to start the planner by providing the project UUID as an URL parameter. This message should be used only for other scenarios.

Input request for project load in kitchen application.

Key	Type	Value/Template	Description
event	string	LoadProject	–
content	object	`id`: string	Project UUID from the ByMe platform.

InfoRequestedProject

Output emitted with additional information about the current project.

Key	Type	Value/Template	Description
event	string	InfoRequestedProject	–
content	object	`projectID` `projectName` `projectDesc` `ProjectDateCreation` `ProjectDateUpdate`	`projectID`: UUID of the project. `projectName`: Name of the project. `projectDesc`: Description of the project. `ProjectDateCreation`: Creation date of the project. `ProjectDateUpdate`: Update date of the project.

InfoRequestedUser

Output emitted with additional information about the current user.

Key	Type	Value/Template	Description
event	string	InfoRequestedUser	–
content	object	`userID`	`userID`: ID of the user.

SaveStarted

Output emitted when the save process of a project is started in the planner, with additional information about the saved project.

Key	Type	Value/Template	Description
event	string	SaveStarted	–
content	object	`bom` `configuredBoms` `projectInfo` `configuredProjectInfos` `projectID`	`bom`: Product List, refer to Bill of Material Reference for a complete description of BOM in JSON format. `configuredBoms`: An array of objects each containing the BOM of a project configurator group. Each object contains the following keys: - `configurationName` - `configuratorId` - `groupId` - `bom` `projectInfo`: The project infos of the Home project. `configuredProjectInfos`: An array of objects each containing the project infos of a project configurator group. Each object contains the following keys: - `configurationName` - `configuratorId` - `groupId` - `projectInfo` `projectID`: Project UUID from the ByMe platform.

Template

{
  "event": "SaveStarted",
  "content": {
    "bom": { ... },
    "configuredBoms": [
      {
        "configurationName": "My configuration name",
        "configuratorId": "confId",
        "groupId": "xxx-yyy-zzz",
        "bom": { ... }
      }
    ],
    "projectInfo": { ... },
    "configuredProjectInfos": [
      {
        "configurationName": "My configuration name",
        "configuratorId": "confId",
        "groupId": "xxx-yyy-zzz",
        "projectInfo": { ... }
      }
    ],
    "projectID": "xxx-yyy-zzz"
  }
}

ProjectSavingSucceeded

Output emitted when the project is saved in the planner, with additional information about the saved project.

Key	Type	Value/Template	Description
event	string	ProjectSavingSucceeded	–
content	object	`id` `name` `description`	`id`: Project UUID from the ByMe platform. `name`: The name of the saved project. `description`: The description of the saved project.

ProjectSavingFailed

Output emitted when the project is try to save and failed in the planner, with additional information about the project.

Key	Type	Value/Template	Description
event	string	ProjectSavingFailed	–
content	–	–	–

ProjectLoadingSucceeded

Output emitted when the project is loading with success in the planner.

Key	Type	Value/Template	Description
event	string	ProjectLoadingSucceeded	–
content	–	–	–

ProjectLoadingFailed

Output emitted when the project is loading in the planner and failed.

Key	Type	Value/Template	Description
event	string	ProjectLoadingFailed	–
content	–	–	–

ProductListWithBOM

Input and Output send this event to get the BOM, and the same event is emitted whith the result.

As input:

Key	Type	Value/Template	Description
event	string	ProductListWithBOM	–
content	–	–	–

As output:

Key	Type	Value/Template	Description
event	string	ProductListWithBOM	–
content	object	`bom` `configuredBoms`	`bom`: the BOM of the Home project `configuredBoms`: an array of objects each containing the BOM of a project configurator group. Each object contains the following keys: - `configurationName` - `configuratorId` - `groupId` - `bom`

Template

{
  "event": "ProductListWithBOM",
  "content": {
    "bom": { ... },
    "configuredBoms": [
      {
        "configurationName": "My configuration name",
        "configuratorId": "confId",
        "groupId": "xxx-yyy-zzz",
        "bom": { ... }
      }
    ]
  }
}

ProjectInfoRequested

Input send this event to the planner to retreive the project infos.

Key	Type	Value/Template	Description
event	string	ProjectInfoRequested	–
content	object	`expanded`	`expanded`: Boolean. If true, returns an expanded version of the project infos with details on every sub-products

ProjectInfoGenerated

Output emitted by the planner when the Project Infos is requested. By listening to this event, the planner sends the necessary data related to ProjectInfos coming from project configurators.

Key	Type	Value/Template	Description
event	string	ProjectInfoGenerated	–
content	object	`projectInfo` `configuredProjectInfos`	`projectInfo`: the project infos of the Home project `configuredProjectInfos`: an array of objects each containing the project infos of a project configurator group. Each object contains the following keys: - `configuratorId` - `groupId` - `projectInfo`

Template

{
  "event": "ProjectInfoGenerated",
  "content": {
    "projectInfo": { ... },
    "configuredProjectInfos": [
      {
        "configuratorId": "confId",
        "groupId": "xxx-yyy-zzz",
        "projectInfo": { ... }
      }
    ]
  }
}

Bill Of Material (BOM)

BOMComputationReady

Output emitted at the first time when the BOM is able to be computed by the planner (e.g. after opening a project).

Key	Type	Value/Template	Description
event	string	BOMComputationReady	–
content	object	BOM	Product List, refer to Bill of Material Reference for a complete description of BOM in JSON format.

ExternalPriceRequested

It is possible to use an external price engine to compute the total price, and this feature is controlled by the parameter useExternalPriceEngine in application distribution.

Output emitted by the planner after each BOM computation when using an external price engine.
By listening to this event, the integration developer can implement the business logic of the total price computation based on the BOM. The computed price info has to be sent back to the planner with the message ExternalPriceResponse.

Key	Type	Value/Template	Description
event	string	ExternalPriceRequested	–
content	object	`bom`	`bom`: Contains Item List, refer to Bill of Material Reference for a complete description of BOM in JSON format.

ExternalPriceResponse

Input received by the planner after the total price is computed by the client integration (see ExternalPriceRequested).

This message has to contain all the necessary informations for the planner to display the price. It must be a JSON object as described below.

Key	Type	Value/Template	Description
event	string	ExternalPriceResponse	–
content	object	`pricable` `totalPrice`	`pricable`: boolean that tells if the BOM sent via ExternalPriceRequested can be priced. Setting false will result in the planner displaying an error message instead of the price. `totalPrice`: a JSON object containing the following keys: - `regular`: regular price (number) - `current`: current price (number) - `discountType`: type of discount (string) - `startDate`: date from which the kitchen price becomes available (string). Must be a valid date string input for the Date.parse() js function. - `endDate`: date after which the kitchen price is no longer available (string). Must be a valid date string input for the Date.parse() js function. For more information about the `totalPrice` attribute, see the BOM documentation

Template

{
  "event": "ExternalPriceResponse",
  "content": {
    "pricable": true,
    "totalPrice": {
        "regular": 6500,
        "current": 6250,
        "discountType": "membership",
        "startDate": null,
        "endDate": "2021-12-05T00:00:00.000Z"
    }
  }
}

Help Center

NeedHelpClicked

Output emitted when user clicks on "Need more help?" link in help center in Home application. It can be used by the integration developers to display any kind of help to the consumer.

Key	Type	Value/Template	Description
event	string	NeedHelpClicked	Additional assistance from help center in Home.
content	–	–	–

Project Configurator Bridge

Messages in this list are specific to project configurators. If you don't use a project configurator, the following messages are not used.
If you use a project configurator, the following messages are bridged from your website to the project configurator (passing by HR) and back. Here is an example to illustrate:

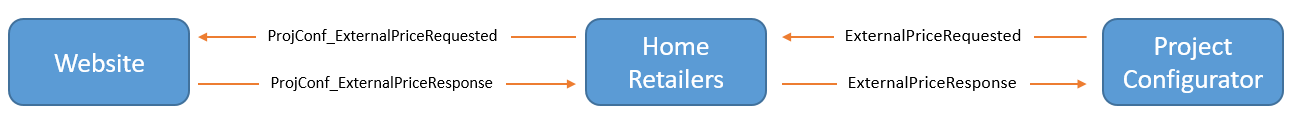

Project Configurator iframe example

⚠️ Only the following messages are bridged, so any other message sent by the project configurator will not be bridged to the website. Similarily, any other message sent by the website will not be bridged to the project configurator.

Note that your project configurator must support those iframe messages without the ProjConf_ prefix. See the project configurator associated documentation for more information.

ProjConf_ExternalPriceRequested

Output emitted by the planner when a project configurator requests an external price computation.
By listening to this event, the integration developer can implement the business logic of the total price computation based on the BOM. The computed price info has to be sent back to the planner with the message ProjConf_ExternalPriceResponse.

The content of this message depends on the project configurator. Check the associated documentation.

Key	Type	Value/Template	Description
event	string	ProjConf_ExternalPriceRequested	–
content	any	any	the content depends on the project configurator

ProjConf_ExternalPriceResponse

Input received by the planner after the total price is computed by the client integration for a project configurator (see ProjConf_ExternalPriceRequested).

The content of this message depends on the project configurator. Check the associated documentation.

Key	Type	Value/Template	Description
event	string	ProjConf_ExternalPriceResponse	–
content	any	any	the content depends on the project configurator

ProjConf_PriceInfoButtonClicked

Output emitted by the planner when a price info button is clicked in a project configurator.

The content of this message depends on the project configurator. Check the associated documentation.

Key	Type	Value/Template	Description
event	string	ProjConf_PriceInfoButtonClicked	–
content	any	any	the content depends on the project configurator

ProjConf_NeedHelpClicked

Output emitted by the planner when the need help link is clicked in the help center in a project configurator.

The content of this message depends on the project configurator. Check the associated documentation.

Key	Type	Value/Template	Description
event	string	ProjConf_PriceInfoButtonClicked	–
content	any	any	the content depends on the project configurator

External Configurator

Listening

Input emitted for the initialization of each module of the application.

Key	Type	Value/Template	Description
event	string	Listening	–
content	–	–	–

ProductSaved

Input emitted when the product is saved in the external configurator.

Key	Type	Value/Template	Description
event	string	ProductSaved	–
content	object	`configuratorData` : String `configuratorID` : String `description` : String `extension` : String `modelBuffer` : ArrayBuffer `name` : String `price` : Float `thumbnail` : ArrayBuffer `thumbnailExtension` : String	`configuratorData`: The product new configurationData. This value is stored by the platform, to give back to the configurator for any future modification of the product. `configuratorID` : ID of the configurator `description`: (Optional) description of the product `extension` : the 3D model file’s extension (only BM3 and GLTF currently supported) `modelBuffer`: the 3D model file as an ArrayBuffer `name`: name of the product `price` : (Optional) the product’s price `thumbnail` : The thumbnail of the final configured product as an ArrayBuffer `thumbnailExtension` : the thumbnail file’s extension (only JPG currently supported)

Template

{
  configuratorData: "B61-315 Module L50 x H231||C||S|Material__zone1|Chene_Structure||S|Material__zone2|Tex-Style",
  configuratorID: "gautier_innersense",
  description: "Module L50 H231 P37  - L50 / B61-315 Module L50 x H231 / Chêne structuré / 0",
  extension: "BM3",
  modelBuffer: ArrayBuffer(492018) {}",
  name: "B61-315 Module L50 x H231",
  price: 0,
  thumbnail: ArrayBuffer(6110) {},
  thumbnailExtension: "JPG"
}

BadRequest

Input emitted when the request is not valid or the user encounters another error like a network issue.

Key	Type	Value/Template	Description
event	string	BadRequest	–
content	object	`error` : String	`error`: error message explaining the issue.

Template

{
  error: "The detailed message of the encountered error."
}

ConfigureProduct

Input emmited when the user want to configure the product with external configurator (add/remove/edit assembly component etc.).

Key	Type	Value/Template	Description
event	string	ConfigureProduct	–
content	object	`configurationData` : String	`configurationData`: The configuration data of the product

Template

{
  configurationData: "Table Module L50 x H231"
}

BadResponse

Output emmited when the user encounters an error when the product is saved.

Key	Type	Value/Template	Description
event	string	BadResponse	–
content	object	`error` : String	`error`: error message explaining the issue..

Template

{
  error: "error message explaining the issue."
}

Project Configurator

Listening

Output emitted by the project configurator at startup to indicate Home Retailers that it is ready.

Key	Type	Value/Template	Description
event	string	Listening	–
content	–	–	–

ConfigureProject

Input emitted by Home Retailers to initialize the project configurator with data

Key	Type	Value/Template	Description
event	string	ConfigureProject	–
content	object	`project`: json object `token`: string `configurationData`: object	`project`: the Home Retailers full project `token`: the Home Retailers token. Should be used to authenticate to the ByMe API. `configurationData`: object containing the following data: - `buildingIndex` (number): the index of the current building displayed in HR when launching the configurator - `levelIndex` (number): the index of the current level displayed in HR when launching the configurator - `nonConfigurableUuids` (array of strings): the list of products UUIDs that do not belong to this configurator. These are products inserted from HR directly, or from another project configurator. You should not allow their modification in your configurator. - `furnitureUuid` (string): the UUID of a furniture from your configurator that the user wishes to edit specifically. This is not given the first time a user enters your configurator.

Template

{
    "project": { *bmproj_content* },
    "token": "xxxyyyzzz",
    "configurationData": {
        "buildingIndex": 0,
        "levelIndex": 1,
        "nonConfigurableUuids": [ "aaabbbccc", "dddeeefff" ],
        "furnitureUuid": null
    }
}

BadRequest

Output emitted by the project configurator when it encounters an error like a network issue.

This event will close the configurator and resume Home Retailers with no modification to the project. An error notification is displayed to inform the user.

Key	Type	Value/Template	Description
event	string	BadRequest	–
content	object	`error`: string	`error`: error message explaining the issue.

Template

{
    "error": "The detailed message of the encountered error."
}

Canceled

Output emitted by the project configurator when the user cancels the configuration.

This event will close the configurator and resume Home Retailers with no modification to the project.

Key	Type	Value/Template	Description
event	string	Canceled	–
content	–	–	–

ProjectSaved

Output emmited by the project configurator when the user validates the configuration.

Key	Type	Value/Template	Description
event	string	ProjectSaved	–
content	object	`project`: json object `configurationData`: object	`project`: the updated project (will be loaded by Home Retailers) `configurationData`: object containing the following data: - `configuredUuids` (array of strings): the full list of products UUIDs that are managed by this configurator - `bom` (object): the full BOM of this configurator. Must only include products whose UUIDs are in configuredUuids (do not price non-configured products) - `projectInfos` (object): the project infos of this configurator.

Template

{
    "project": { *bmproj_content* },
    "configurationData": {
        "configuredUuids": [ "aaabbbccc", "dddeeefff" ],
        "bom": { *bom_content* },
        "projectInfos": { *project_infos_content* },
    },
}

Print

PrintButtonClicked

Output emitted if the user clicks "Print" button.

Key	Type	Value/Template	Description
event	string	PrintButtonClicked	–
content	object	`name` `description` `updateDate` `brandingJson` `rawMedias` `translation` `language` `namespace` `roomsBOM` `outsideBOM` `projectBOM` `showBrand`	`name`: Name of the project `description`: Project description `updateDate`: uodated date `brandingJson`: styling Json of the brand (retailer) `rawMedias`: list of project media `translation`: Mapping of translations, with which to override the default one in widget `language`: Language of the application `namespace`: Configure i18n translations. `roomsBOM`: Get BOM products for each level of the project. `outsideBOM`: An object with a "furnitures" entry, an array of all the furnitures outside the building `projectBOM`: Get BOM materials contained in the project. `showBrand`: Show brand

OpenPrintLayer

Output emitted for opening print layer with requested parameters. Those are described below:

Key	Type	Value/Template	Description
event	string	OpenPrintLayer	–
content	object	`translation` `language` `namespace` `roomsBOM` `projectBOM`	`translation`: Print name translation `language`: Language of the application `namespace`: Configure i18n translations `roomsBOM`: Get BOM products for each level of the project. `projectBOM`: Get BOM materials contained in the project.

Template

{
 "translation": object,
 "language": string,
 "namespace": string,
 "roomsBOM": object,
 "projectBOM": object,
}

Listening

Input emitted for the initialization of each module of the application.

Key	Type	Value/Template	Description
event	string	Listening	–
content	object	–	–

ClosePrintLayer

Input emmited when the user wants to close the print layer.

Key	Type	Value/Template	Description
event	string	ClosePrintLayer	–
content	–	–	–

Product Sheet

SpecialProductInfoRequested

Output emitted if the user clicks "i" button.

Key	Type	Value/Template	Description
event	string	SpecialProductInfoRequested	–
content	object	`dbID` `reference` `name` `typeID` `type` `shortDescription` `brandID` `brandName` `width` `height` `depth`	`dbID`: "Product's DB ID" `reference`: "" `name`: "Name of the product" `typeID`: "Type ID of furniture" `type`: "Type of furniture" `shortDescription`: "" `brandID`: "Product Brand's ID" `brandName`: "Product Brand" `width`: "Width of the Product" `height`: "Height of the Product" `depth`: "Depth of the Product"

OpenProductSheet

Output requested when the ProductSheet widget has finished being loaded (thus with the reception of message "Listening" from widget), the application will send "OpenProductSheet" event to ProductSheet widget to ask for visulization of product informations.

Key	Type	Value/Template	Description
event	string	OpenProductSheet	–
content	object	`isConfigurable` `isProductSet` `subProducts` `sharingOptions` `hasBackButton` `translation` `language` `namespace`	`isConfigurable`: If the product can be configured by an external configurator `isProductSet`: If the product is a product set `subProducts`: Object contains the similar product of the current product `sharingOptions`: List of shared options. `hasBackButton`: If several visited products. `translation`: 2 translations keys, one for the website, one for the widget `language`: Language of the application. `namespace`: Configure i18n translations.

Template

{
  "event": "OpenProductSheet",
  "content": {
    "dbID": "GENERIC_FURNITURE_0158",
    "reference": "lit_double_06",
    "name": "Double Bed",
    "typeID": 108,
    "type": "furniture",
    "freeTags": [],
    "commercialDescription": "King size with blue linen",
    "shortDescription": "Double bed",
    "thumbnailURLLarge": "https://d15x0cs0o0urpo.cloudfront.net/286A8CED-9ADD-4345-A7FF-FF9462024168/Thumbnails/512.jpg",
    "thumbnailURLMedium": "https://d15x0cs0o0urpo.cloudfront.net/286A8CED-9ADD-4345-A7FF-FF9462024168/Thumbnails/256.jpg",
    "thumbnailURLSmall": "https://d15x0cs0o0urpo.cloudfront.net/286A8CED-9ADD-4345-A7FF-FF9462024168/Thumbnails/64.jpg",
    "startDate": null,
    "endDate": null,
    "isExpired": false,
    "brandID": 5,
    "brandName": "BryoForHR",
    "clientMetadata": null,
    "width": 1704,
    "height": 853,
    "depth": 2147,
    "price": {
      "regular": {
        "value": 700,
        "type": "regular",
        "startDate": null,
        "endDate": null,
        "additionalData": null
      },
      "current": {
        "value": 640,
        "type": "reduced",
        "startDate": null,
        "endDate": null,
        "additionalData": null
      },
      "discountType": "reduced"
    },
    "prices": {
      "regularPrice": "£700.00",
      "discountType": "reduced",
      "currentPrice": "£640.00"
    },
    "regularPriceLabel": "Regular price",
    "reduced": true,
    "subProducts": [
      {
        "dbID": "GENERIC_FURNITURE_0155",
        "reference": "lit_double_03",
        "name": "",
        "typeID": 108,
        "type": "furniture",
        "freeTags": [],
        "commercialDescription": "",
        "shortDescription": "",
        "thumbnailURLLarge": "https://d15x0cs0o0urpo.cloudfront.net/3CF77789-92E4-450F-8555-8082961591F4/Thumbnails/512.jpg",
        "thumbnailURLMedium": "https://d15x0cs0o0urpo.cloudfront.net/3CF77789-92E4-450F-8555-8082961591F4/Thumbnails/256.jpg",
        "thumbnailURLSmall": "https://d15x0cs0o0urpo.cloudfront.net/3CF77789-92E4-450F-8555-8082961591F4/Thumbnails/64.jpg",
        "startDate": null,
        "endDate": null,
        "isExpired": false,
        "brandID": 5,
        "brandName": "BryoForHR",
        "clientMetadata": null,
        "width": 1937,
        "height": 667,
        "depth": 2182
      },
      {
        "dbID": "GENERIC_FURNITURE_0179",
        "reference": "lit_double_04",
        "name": "",
        "typeID": 108,
        "type": "furniture",
        "freeTags": [],
        "commercialDescription": "",
        "shortDescription": "",
        "thumbnailURLLarge": "https://d15x0cs0o0urpo.cloudfront.net/F923B35A-4323-4C05-ADB7-CDF262C3DA1E/Thumbnails/512.jpg",
        "thumbnailURLMedium": "https://d15x0cs0o0urpo.cloudfront.net/F923B35A-4323-4C05-ADB7-CDF262C3DA1E/Thumbnails/256.jpg",
        "thumbnailURLSmall": "https://d15x0cs0o0urpo.cloudfront.net/F923B35A-4323-4C05-ADB7-CDF262C3DA1E/Thumbnails/64.jpg",
        "startDate": null,
        "endDate": null,
        "isExpired": false,
        "brandID": 5,
        "brandName": "BryoForHR",
        "clientMetadata": null,
        "width": 1800,
        "height": 2197,
        "depth": 2327
      },
      {
        "dbID": "GENERIC_FURNITURE_0445",
        "reference": "generique_lit_standart_01",
        "name": "Double bed",
        "typeID": 108,
        "type": "furniture",
        "freeTags": [],
        "commercialDescription": "",
        "shortDescription": "",
        "thumbnailURLLarge": "https://d15x0cs0o0urpo.cloudfront.net/37E1B42A-81BB-4513-9899-AE7610D2D481/Thumbnails/512.jpg",
        "thumbnailURLMedium": "https://d15x0cs0o0urpo.cloudfront.net/37E1B42A-81BB-4513-9899-AE7610D2D481/Thumbnails/256.jpg",
        "thumbnailURLSmall": "https://d15x0cs0o0urpo.cloudfront.net/37E1B42A-81BB-4513-9899-AE7610D2D481/Thumbnails/64.jpg",
        "startDate": null,
        "endDate": null,
        "isExpired": false,
        "brandID": 5,
        "brandName": "BryoForHR",
        "clientMetadata": null,
        "width": 1607.438,
        "height": 610.3379999515712,
        "depth": 2005.66
      }
    ],
    "sharingOptions": [
      {
        "name": "facebook",
        "enabled": true
      },
      {
        "name": "twitter",
        "enabled": true
      },
      {
        "name": "pinterest",
        "enabled": true
      },
      {
        "name": "mail",
        "enabled": true
      },
      {
        "name": "embed",
        "enabled": true
      }
    ],
    "hasBackButton": false,
    "productSheetURL": ""
  }
}

Listening

Input emitted for the initialization of each module of the application.

Key	Type	Value/Template	Description
event	string	Listening	–
content	object	–	–

AddProduct

Input emmited when user clicks on "Add to project" button on te ProductSheet widget, send "AddProduct" message to application to inform request of product insertion.

Key	Type	Value/Template	Description
event	string	AddProduct	–
content	–	–	–

CloseProductSheet

Input emmited when the user clicks on "close" icon on the ProductSheet widget, send "CloseProductSheet" message to inform the application that the ProductSheet widget has been destroyed.

Key	Type	Value/Template	Description
event	string	CloseProductSheet	–
content	–	–	–

ShowPreviousProduct

Input emmited when user clicks on “back” button on the product sheet view, he asks to see the previous product to be displayed in the product sheet.

Key	Type	Value/Template	Description
event	string	ShowPreviousProduct	–
content	object	`dbId`	`dbId`: the dbId of the product

{
 "dbId": "GENERIC_FURNITURE_0270"
}

ShareProductByOption

Input emmited when the user wants to share the product through a specific social network.

Key	Type	Value/Template	Description
event	string	ShareProductByOption	–
content	object	`option` `name` `productSheetURL`	`option`: the name of the option clicked `name`: name of the product `productSheetURL`: The URL of the product sheet

{
 "option": pinterest,
 "name": "Service Porcelaine 18 pces PERLE CHIC",
 "productSheetURL": " http://www.customer.html"
}

ShareProduct

Output emmited when the user wants to share the product through a specific social network.

Key	Type	Value/Template	Description
event	string	ShareProduct	–
content	object	`option` `name`	`option`: the name of the option clicked `name`: name of the product

{
 "option": pinterest,
 "name": "Service Porcelaine 18 pces PERLE CHIC",
 "productSheetURL": " http://www.customer.html"
}

AddToFavorite

Input emmited when the user wants to add the product into favorite.

Key	Type	Value/Template	Description
event	string	AddToFavorite	–
content	object	`dbId` `from`	`dbId`: the dbId of the product `from`: Indicates where does the request comes from.

{
 "dbId": "GENERIC_FURNITURE_0270",
 "from": "product-sheet",
}

ProductClicked

Input emmited when the user clicks on one of the product in the similar product section, this message is sent to the planner to display the selected product.

Key	Type	Value/Template	Description
event	string	ProductClicked	–
content	object	`dbId`	`dbId`: the dbId of the product

{
 "dbId": "GENERIC_FURNITURE_0270"
}

Project Overview

OpenProjectOverview

Output emitted for opening project overview of the user with several parameters. Those are described below:

Key	Type	Value/Template	Description
event	string	OpenProjectOverview	–
content	object	`translation` `language` `namespace` `roomsBOM` `projectBOM`	`translation`: 2 translations keys, one for the website, one for the widget `language`: Language of the application. `namespace`: Configure i18n translations. `roomsBOM`: Get BOM products for each level of the project. `projectBOM`: Get BOM materials contained in the project.

Template

{
 "translation": object,
 "language": string,
 "namespace": string,
 "roomsBOM": object,
 "projectBOM": object,
}

ProjectOverviewButtonClicked

Output emitted for iFrame message of project overview with several parameters. Those are described below:

Key	Type	Value/Template	Description
event	string	ProjectOverviewButtonClicked	–
content	object	`name` `description` `tab` `projectUserID` `hidePrice` `sharingOptions` `price` `materialPricing` `brandingJson` `properties` `surface` `totalMediasCount` `rawMedias` `translation` `language` `namespace` `roomsBOM` `outsideBOM` `projectBOM` `owner` `currentUser` `showBrand`	`name`: Name of the project `description`: Project description `tab`: tab `projectUserID`: Project User ID `hidePrice`: Boolean `sharingOptions`: Sharing Options `price`: a JSON object containing price details `materialPricing`: Boolean `brandingJson`: styling Json of the brand (retailer) `properties`: Project properties `surface`: Details of surface area `totalMediasCount`: Total media count `rawMedias`: list of project media `translation`: Mapping of translations, with which to override the default one in widget `language`: Language of the application `namespace`: Configure i18n translations. `roomsBOM`: Get BOM products for each level of the project. `outsideBOM`: An object with a "furnitures" entry, an array of all the furnitures outside the building `projectBOM`: Get BOM materials contained in the project. `owner`: Owner `currentUser`: Current logged in User `showBrand`: Show brand

{
  "event": "ProjectOverviewButtonClicked",
  "content": {
    "hidePrice": false,
    "materialPricing": true,
    "proceed": true,
    "sharingOptions": [],
    "tab": 1,
    "name": "My project",
    "description": null,
    "projectUserID": 54,
    "price":{},
    "language": "en-GB",
    "namespace": "translation",
    "currentUser": 54,
    "owner": true,
    "showBrand": true,
    "brandingJson":{},
    "properties":{},
    "surface":{},
    "totalMediasCount": 1,
    "rawMedias":[],
    "outsideBOM":{},
    "roomsBOM":[],
    "projectBOM":[]
  }
}

AddToBasket

Input requested when the user clicks on "Add to basket" button on the ProjectOverview default widget. He should be able to select some or all of the products presented in the item list, when the selection has been done, send "AddToBasket" event to inform the application of the user selection.

Key	Type	Value/Template	Description
event	string	AddToBasket	–
content	object	`products`	`products`: Array of products that user want to buy, each element in the array must be an object containing the dedicated properties.

Listening

Input emitted for the initialization of each module of the application.

Key	Type	Value/Template	Description
event	string	Listening	–
content	object	–	–

ShareMedia

Input emmited when the user want to share one of his generated media, he click on "share" media button, Widget will send iframe message "ShareMedia" with related media information to ask for share.

Key	Type	Value/Template	Description
event	string	ShareMedia	–
content	object	`shareTarget` `media`	`shareTarget`: The social media's target `media`: The URL of the media

{
  "event": "ShareMedia",
  "content": {
    "shareTarget": "twitter",
    "media": "https://byme-enterprise-preprod.s3.eu-west-1.amazonaws.com/data/homebymeProjects/9FD743DB-D854-46A5-B968-D3B33F3854E1/images/renderHQ/CE1737A6-8929-4A2A-B9C7-455DE5B7BCDA_468_351.jpg"
  }
}

DeleteMedia

Input emmited when the user wants to remove one of his generated media, he click on "delete" media button. The widget will send iframe message "DeleteMedia" with related media information to ask for deletion. The App will then send the "WsMediaDeleted" iframe message once media is deleted.

Key	Type	Value/Template	Description
event	string	DeleteMedia	–
content	object	`imageID`	`imageID`: The ID of the image which is necessary to delete

{
  "event": "DeleteMedia",
  "content": {
    "imageID": 49540
  }
}

CloseProjectOverview

Input emmited when the user click on "close" icon on the ProjectOverview default widget, send "CloseProjectOverview" event to inform the application that the default widget has been destroyed.

Key	Type	Value/Template	Description
event	string	CloseProjectOverview	–
content	–	–	–

OpenPrint

Input emitted for opening print widget.

Key	Type	Value/Template	Description
event	string	OpenPrint	–
content	–	–	–

FormattedPricesRequested

Input emmited when the user is selecting the products to be added to his basket. We need to update the total price based on the selected products. The calculated total price does not have the local format, so we need to send the prices information to the application to have the correcting formatting.

Key	Type	Value/Template	Description
event	string	FormattedPricesRequested	–
content	object	`prices` `from`	`prices`: Array of product prices which are not yet formatted in the current local `from`: Indicates where does the request comes from.

{
  "event": "FormattedPricesRequested",
  "content": {
    "prices": {
      "regular": 0,
      "current": 0,
      "discountType": null,
      "vatInformation": null
    },
    "from": "ItemList"
  }
}

FormattedPrices

Output emmited when user is selecting the products to be added to his basket. We need to update the total price based on the selected products. At this time, the calculated total price does not have the local format, so we need to send the prices information to the application to have the correct formatting.

Key	Type	Value/Template	Description
event	string	FormattedPrices	–
content	object	`prices` `from`	`prices`: Array of product prices formatted in the current locale `from`: Indicates where does the request comes from.

Template

{
 "prices": {
      "regular": 0,
      "current": 0,
      "discountType": null,
      "vatInformation": null
    },
 "from": "ItemList",
}

WsMediaDeleted

Output emmited when user has deleted a media from his generated medias and WS call is done.

Key	Type	Value/Template	Description
event	string	DeleteMedia	–
content	object	`imageID` `remainingSum`	`imageID`: The ID of the image which is necessary to delete `remainingSum`: number of remaining medias

{
  "event": "WsMediaDeleted",
  "content": {
    "imageID": 49540,
    "remainingSum": 37
  }
}

SendUpdatedMedias

Output emmited when user has deleted a media from his generated medias and default widget has requested the updated medias object.

Key	Type	Value/Template	Description
event	String	"SendUpdatedMedias"
content	Object	`[]`: Array	- `[]`: Array of all available medias

{
  "event": "SendUpdatedMedias",
  "content": [
    {
      "creationDate": "2020-08-03T09:59:53.000Z",
      "id": 74502,
      "metadata": {media: "images/render360/3DCE4252-EA9B-4DF3-8F25-C6F74C299…/3DCE4252-EA9B-4DF3-8F25-C6F74C29934C_468_351.jpg", gallery: "images/render360/3DCE4252-EA9B-4DF3-8F25-C6F74C299…/3DCE4252-EA9B-4DF3-8F25-C6F74C29934C_960_540.jpg", quality: "High", krpanoTour: "images/render360/3DCE4252-EA9B-4DF3-8F25-C6F74C29934C/vtour/tour.xml", compensated: false, …},
      "name": null,
      "typeMediaID": 1,
      "url": "https://byme-enterprise-preprod.s3.eu-west-1.amazonaws.com/data/homebymeProjects/22FEF3D1-F6C1-4656-8578-B68A29D426C6/images/render360/3DCE4252-EA9B-4DF3-8F25-C6F74C29934C"
    },
    {
      "creationDate": "2020-03-05T11:16:29.000Z",
      "id": 50414,
      "metadata": {media: "images/5-3-2020_12-16-28_468_351.jpg", gallery: "images/5-3-2020_12-16-28_960_540.jpg"},
      "name": "Snapshot",
      "type": 2,
      "typeMediaID": 3,
      "url": "https://byme-enterprise-preprod.s3.eu-west-1.amazonaws.com/data/homebymeProjects/22FEF3D1-F6C1-4656-8578-B68A29D426C6/images/5-3-2020_12-16-28_960_540.jpg"
    }
    ...
  ]
}

Template

{
 "prices": {
      "regular": 0,
      "current": 0,
      "discountType": null,
      "vatInformation": null
    },
 "from": "ItemList",
}

IFrame Communication Introduction​

Template​

Overview of Data Synchronization​

Website​

Third-party Application​

Default Widget​

Authentication​

AuthenticationRequired​

Authentication​

Template​

AuthenticationSucceeded​

Template​

AuthenticationFailed​

Template​

TokenExpired​

TokenRefreshed​

Template​

LoginRequired​

Login​

LoginSucceeded​

LoginFailed​

Application​

Ready​

SetUpSettings​

Template​

CloseApp​

MinimizeButtonClicked​

Load/Save Project​

LoadProject​

InfoRequestedProject​

InfoRequestedUser​

SaveStarted​

Template​

ProjectSavingSucceeded​

ProjectSavingFailed​

ProjectLoadingSucceeded​

ProjectLoadingFailed​

ProductListWithBOM​

Template​

ProjectInfoRequested​

ProjectInfoGenerated​

Template​

Bill Of Material (BOM)​

BOMComputationReady​

ExternalPriceRequested​

ExternalPriceResponse​

Template​

Help Center​

NeedHelpClicked​

Project Configurator Bridge​

ProjConf_ExternalPriceRequested​

ProjConf_ExternalPriceResponse​

ProjConf_PriceInfoButtonClicked​

ProjConf_NeedHelpClicked​

External Configurator​

Listening​

ProductSaved​

Template​

BadRequest​

Template​

ConfigureProduct​

Template​

BadResponse​

Template​

Project Configurator​

Listening​

ConfigureProject​

Template​

BadRequest​

Template​

Canceled​

ProjectSaved​

Template​

Print​

PrintButtonClicked​

OpenPrintLayer​

Template​

Listening​

ClosePrintLayer​

Product Sheet​

IFrame Communication Introduction

Template

Overview of Data Synchronization

Website

Third-party Application

Default Widget

Authentication

AuthenticationRequired

Authentication

Template

AuthenticationSucceeded

Template

AuthenticationFailed

Template

TokenExpired

TokenRefreshed

Template

LoginRequired

Login

LoginSucceeded

LoginFailed

Application

Ready

SetUpSettings

Template

CloseApp

MinimizeButtonClicked

Load/Save Project

LoadProject

InfoRequestedProject

InfoRequestedUser

SaveStarted

Template

ProjectSavingSucceeded

ProjectSavingFailed

ProjectLoadingSucceeded

ProjectLoadingFailed

ProductListWithBOM

Template

ProjectInfoRequested

ProjectInfoGenerated

Template

Bill Of Material (BOM)

BOMComputationReady

ExternalPriceRequested

ExternalPriceResponse

Template

Help Center

NeedHelpClicked

Project Configurator Bridge

ProjConf_ExternalPriceRequested

ProjConf_ExternalPriceResponse

ProjConf_PriceInfoButtonClicked

ProjConf_NeedHelpClicked

External Configurator

Listening

ProductSaved

Template

BadRequest

Template

ConfigureProduct

Template

BadResponse

Template

Project Configurator

Listening

ConfigureProject

Template

BadRequest

Template

Canceled

ProjectSaved

Template

Print

PrintButtonClicked

OpenPrintLayer

Template

Listening

ClosePrintLayer

Product Sheet
