Application Distribution

To be able to use the Storage Configurator, you have to create an Application Distribution.

Note: You can find a full sample here: Application Distribution Sample 🔗

Creation

You can follow this documentation to create one: How to create and Application Distribution 🔗

You will have to choose:

Field	Value
Associated Application	Storage Configurator
Permission	Anonymous
Catalog	Choose at least one catalog here to have access to some products
Parameters	This is mandatory, see more information below. 🔗

Parameters

The parameters are filled using the JSON format.

Supported settings

For...	See...
Language, Units and Currency	locales, currencies
Search filters	search
Pricing	pricing
Widgets	productSheet
Catalog	catalogData
Panel options	editPanel
Search	sortStringFilter, sortNumericFilter, aggregationParameters
2D plans	plans2d
Integration	integration

Top structure

The application distribution settings object is defined with the following attributes:

Attribute	Type	Description
currencies	array of objects	A list of supported currencies in the application distribution
integration	object	Web component integration parameters, when set from the App Distrib
locales	array of objects	A list of supported locales in the application distribution
pricing	object	Application distribution settings related to the pricing
catalogData	object	Application distribution settings related to the catalog entries
editPanel	object	Application distribution settings related to the edit panel
search	object	Application distribution settings related to the search
plans2d	object	Application distribution settings related to the 2d plans
widgets	object	Application distribution settings to configure the default widgets
autoFillers	object	Application distribution settings to configure the automatic fillers

The only mandatory attributes are: locales

Currencies

Attribute name	Status	Type	Default value
currencies	Optional	array of currency objects	[]

This parameter contains a list of specific currency configurations for the Application Distribution. Each object in this array is used to configure how a particular currency is configured for its display in the application.

When the application starts, it determines which currency to use ( see data-pricing -> currencyCode integration parameters 🔗. If it is in this list of currencies, it uses the associated object to configure the currency display. If the currency is not in the currencies list, it falls back on the locale-currency configuration ( see GET /applications/{id}/currencylocales/{locale} 🔗).

A currency object is defined as follow:

Attribute	Type	Mandatory	Description
currencyCode	string	YES	A 3 letters string following ISO 4217 🔗
currencyName	string	YES	The currency name
numberSystem	string	YES	"latin" or "arab". Defines which alphabet to use to display the digits
currencySymbol	string	YES	The symbol to display for the currency
currencySignRighthand	boolean	YES	Defines if the currency symbol should be on the right side of the price number. true to display the symbol on the right side
currencySpacing	boolean	YES	Defines if there should be a space between the price number and the currency symbol. true to display a spacing
decimalSeparator	string	YES	The separator string to separate the decimal digits of the price
thousandSeparator	string	YES	The separator string to separate the thousand groups
noDecimalString	string	YES	The string to display when there is no decimal digits

Example 1 – Array of two currencies

{
    "currencies": [
        {
            "currencyCode": "GBP",
            "currencyName": "British Pound",
            "numberSystem": "latin",
            "currencySymbol": "£",
            "currencySignRighthand": false,
            "currencySpacing": false,
            "decimalSeparator": ".",
            "thousandSeparator": ",",
            "noDecimalString": ""
        },
        {
            "currencyCode": "EUR",
            "currencyName": "euro",
            "numberSystem": "latin",
            "currencySymbol": "€",
            "currencySignRighthand": true,
            "currencySpacing": true,
            "decimalSeparator": ",",
            "thousandSeparator": " ",
            "noDecimalString": ""
        }
    ]
}

Integration

Attribute name	Status	Type	Default value
integration	Optional	Object	{}

This parameter let the Application Distribution modify the integration values of the web component. It has two usages:

• When the Storage Configurator is launched through the planner, it's the only way to set integration values.
• When the Storage Configurator is integrated on another website, this allows setting and changing defaults values without any modification on the customer side.

See the dedicated page for the configuration of the Storage Configurator 🔗.

Locales

Attribute name	Status	Type	Default value
locales	Mandatory	array of locale objects	[]

This parameter contains the list of supported locales for the Application Distribution. It must contain at least one element.

A locale object is defined as follows:

Attribute	Type	Mandatory	Description
isDefault	boolean	NO	If true, tells the application to use this locale by default. It is possible to launch the configurator with a specific locale. 🔗
name	string	YES	A combination of a mandatory and an optional element joined in a string and separated by a "-" (dash). - MANDATORY: 2-letter code of a language, following ISO 639-1 🔗. - OPTIONAL: 2-letter code of a region / country, following ISO 3166-1 🔗. Examples: "da-DK" for "Danish-Danemark" or "fr-FR" for "French-France" or "PT-pt" for "Poruguese-Portugal".
fallback	string	NO	Used for translations only. If a translation key is not found for the given locale, the translation system falls back to this locale instead. If not specified, falls back to English.
unitSystem	string	YES	Defines which unit system is used in the application. Can be metrics or imperial
lengthUnit	string	YES	Defines the base unit for length in the application. Can be millimeter, centimeter, decimeter or meter (for unitSystem = metrics) and inch, foot or yard (for uniSystem = imperial)
lengthPrecision	integer	YES if uniSystem is metrics	The various lengths displayed in the application will be displayed with lengthPrecision decimal digits
lengthFractionPrecision	integer	YES if uniSystem is imperial	Minimal fraction of lengthUnit. Valid values are: 8, 16 or 32

Example 1 – Array of three locales in metrics

{
    "locales":
    [
        {
            "name": "fr-BE",
            "unitSystem": "metrics",
            "lengthUnit": "millimeter",
            "lengthPrecision": 0,
            "fallback": "en"
        },
        {
            "name": "nl-BE",
            "unitSystem": "metrics",
            "lengthUnit": "millimeter",
            "lengthPrecision": 0,
            "fallback": "en"
        },
        {
            "name": "de-DE",
            "unitSystem": "metrics",
            "lengthUnit": "millimeter",
            "lengthPrecision": 0,
            "fallback": "en"
        }
    ]
}

Example 2 – Array of two locales in imperial

{
    "locales":
    [
        {
            "name": "en-US",
            "unitSystem": "imperial",
            "lengthUnit": "foot",
            "lengthPrecision": 0,
            "lengthFractionPrecision": 16,
            "fallback": "en"
        },
        {
            "name": "es-US",
            "unitSystem": "imperial",
            "lengthUnit": "foot",
            "lengthPrecision": 0,
            "lengthFractionPrecision": 16,
            "fallback": "en"
        }
    ]
}

Pricing

Attribute name	Status	Type	Default value
pricing	Optional	Object with pricing information	{}

The pricing attribute groups settings related to pricing configuration. They are described after the example.

Example 1 – Pricing object

{
    "pricing": {
      "externalPrice": false,
      "hide": false,
      "marketZone": "zone_1",
      "priceTopAssembly": false
    }
}

externalPrice

Status	Type	Default value
Optional	boolean	false

Set to true if you want to use an external module to compute the Storage Configurator price. By choosing this option, after each BOM computation, the configurator sends it via a message 🔗 and waits for a reply that must contain the Storage Configurator price to display in the UI.

hide

Status	Type	Default value
Optional	boolean	false

Defines whether the total price is displayed or not in the application.

marketZone

Status	Type	Default value
Optional	string	``

Defines an optional market zone to use when computing prices. The end user will see the prices associated with the given market zone.

Search Filters

Attribute name	Status	Type	Default value
search	Optional	Object	{}

This parameter contains the data necessary to configure the search in the application.

A search object is defined as follows:

Attribute	Type	Mandatory	Description
filters	array of filters 🔗	NO	The list of filters to use for product lists.

Filter

To declare a filter, you create an object that contains the following attributes:

Attribute	Type	Mandatory	Description
key	string	YES	The filter to display. It can be: closed_tags_color: filter by the color closed tag of a product. closed_tags_material: filter by the material closed tag of a product. closed_tags_room: filter by the room closed tag of a product. closed_tags_style: filter by the style closed tag of a product. closed_tags_type: filter by the type closed tag of a product. [parameter_id]: the id of any parameter you want to use as a filter.
order	string	NO	The define the sort order of the filter values. By default, the values are sorted in ascending order. It can be: asc: values will be sorted in ascending order. desc: values will be sorted in descending order.

Translations

The displayed name of the filter will be the name of the parameter itself when the key refers to a custom parameter. It will use the translation key of the parameter as it is defined on the products having this parameter in the list of possible values.

When the filter refers to a closed tag (one of the predefined filter keys), the translation is provided by default.

Example 1 – Configured search filters

{
  "search": {
    "filters": [
      {
        "key": "closed_tags_style",
        "order": "asc"
      },
      {
        "key": "closed_tags_material",
        "order": "desc"
      },
      {
        "key": "closed_tags_type"
      },
      {
        "key": "boolean_filter"
      }
    ]
  }
}

catalogData

The catalogData is used to configure the different catalog entries data displayed in the Storage configurator.

design

Status	Type	Default value
Optional	array of catalog object	[]

Each item in design is an object which describes the information of the catalog. It contains the following attributes:

icon

Status	Type	Default value
Mandatory	string	""

The name of the SVG icon to use for this catalog. Supported values are listed below.

translationKey

Status	Type	Default value
Mandatory	string	""

The translation key suffix for the catalog entry name. The configurator builds the full translation key like follows (where {key_suffix} is replaced by the provided translationKey)

full key = catalog_entry.design_state.{key_suffix}

closedTags

Status	Type	Default value
Mandatory	array of number	[]

List of closed tag IDs that are searched when the user clicks on catalog button. Search results are any product that has either of these closed tags.

freeTags

Status	Type	Default value
Mandatory	array of string	[]

List of free tag IDs that are searched when the user clicks on catalog button. Search results are any product that has either of these free tags.

productRank

Status	Type	Default value
Optional	boolean	false

Defines if the searchScore must be used when sorting results of the search.

editPanel

The editPanel attribute groups settings related to product panel configuration.

groups

Status	Type	Default value
Mandatory	array of parameters object	[]

The groups is used to define the groups of the parameters displayed in the product panel. It contains the following attributes:

parameters

Status	Type	Default value
Mandatory	array of string	[]

The array contains the list of parameters which will be displayed as a group. The parameters of the product will be shown in the panel as the same order defined in the array.

translationKey

Status	Type	Default value
Mandatory	string	""

The translation key is used to translate the name of the group displayed as the title in the panel.

The product panel will display all the visible and editable parameters of a product selected. If a parameter is visible and editable but NOT defined in any array of parameters, it will be shown in the group "Other". It means that you need to have a translationKey as edit_panel.groups.other for displaying any visible and editable parameters which are not belongs to any groups.

Example

"editPanel": {
    "groups": [
        {
            "parameters": [
                "width",
                "depth",
                "height"
            ],
            "translationKey": "edit_panel.groups.dimensions"
        },
        {
            "parameters": [
                "leftCoverPanel",
                "rightCoverPanel",
                "topCoverPanel"
            ],
            "translationKey": "edit_panel.groups.cover_panels"
        },
        {
            "parameters": [
                "autoLeftFillerOption",
                "autoRightFillerOption",
                "autoTopFillerOption"
            ],
            "translationKey": "edit_panel.groups.fillers"
        }
    ]
}

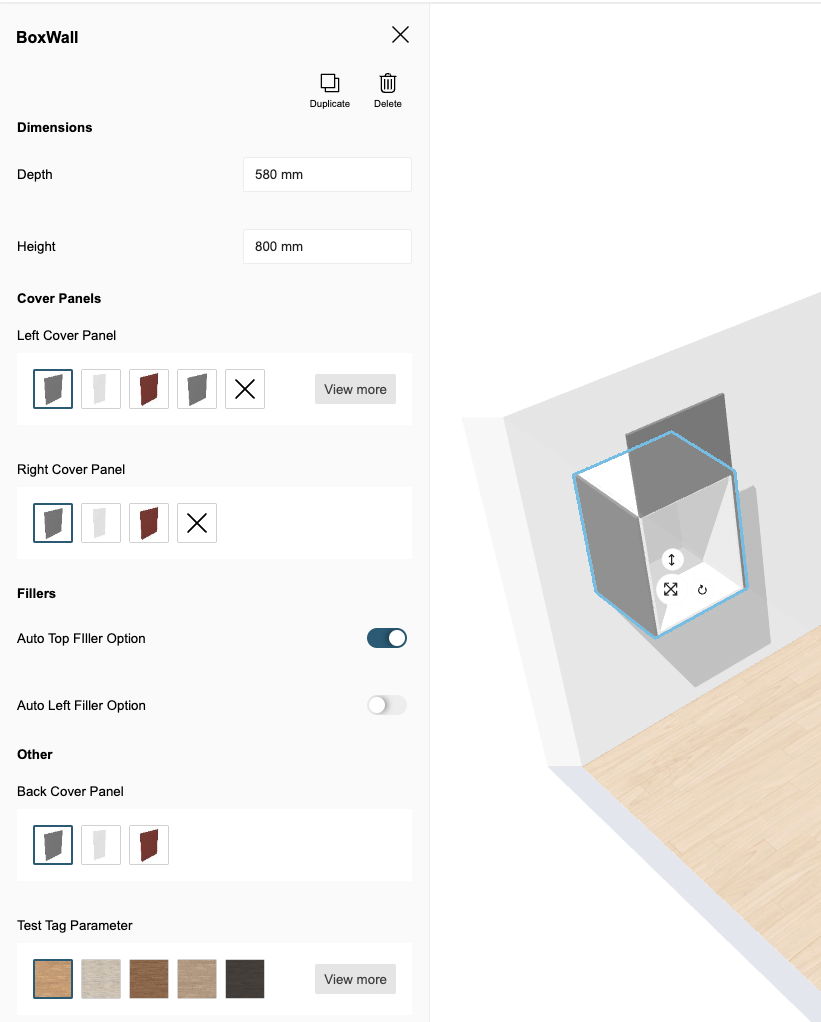

The above example produces the following product panel:

search

The search attribute groups settings related to the search configuration.

aggregationParameters

Status	Type	Default value
Optional	array of string	[]

These aggregation parameters are used in the product browser, replace catalog and the search bar.

For a parameter to be used as a filter, it must be set as a searchable parameter on the product(s) and defined in the API and in application distribution parameters in 3dcloud.

➡️ See the Searchable Parameters 🔗 for a further explanation of how to set the parameters.

{
    "aggregationParameters": [
        "commercialDepth",
        "commercialWidth"
    ]
}

sortStringFilter

Status	Type	Default value
Optional	string	"desc"

sortStringFilter defines the sorting order of the string type filters in the Catalog Browser. If the value of the sortStringFilter is asc it will be sorted in alphabetical order. And If the value is desc, it will be sorted in reverse alphabetical order.

The default value for the key is desc. If no value is provided for the key, by default the filter will be sorted in the reverse alphabetical order.

{
   "sortStringFilter": "desc",
}

sortNumericFilter

Status	Type	Default value
Optional	string	"desc"

sortNumericFilter defines the sorting order of the number type filters in the Catalog Browser. If the value of the sortNumericFilter is asc it will be sorted in ascending order. And If the value is desc, it will be sorted in descending order.

The default value for the key is desc. If no value is provided for the key, by default the filter will be sorted in the descending order.

{
   "sortNumericFilter": "desc"
}

plans2d

The plans2d attribute groups settings related to the generation of 2d plans.

➡️ Refer to 2D Plan Information 🔗

version

Status	Type	Default value
Mandatory	number	–

The 2d plans configuration version. The current last version is 2.

showInfoGrid

Status	Type	Default value
Optional	number	–

To apply Information Grid on the 2DPlans generated.

configs

Status	Type	Default value
Optional	array of config objects	[]

The list of 2D plans configurations. Each config object will result in 1 generated plan. You can generate several 2D plans of the same view with different visible elements on each view.

Possible parameters for a configuration object are:

Name	Mandatory	Type	Possible Values	Description
typePlan	yes	string	"Top" "Face" "TopGround" "TopWall"	the type of plan to compute
showFurniture	–	num	0 or 1	draws the furniture. (default value: 1)
showFurnitureDimension	–	num	0 or 1	draws the furniture dimensions. (default value: 0)
showDepthDimension	–	num	0 or 1	draws the furniture depth dimensions. (default value: 0)
showWallDimension	–	num	0 or 1	draws the wall and bay dimensions. (default value: 0)
showNumbering	–	num	0 or 1	draws the furniture numbers. (default value: 0)
showFronts	–	num	0 or 1	draws the front and handles of the products (default value: 1)
tagsToShow	–	Array<num>	[...]	a list of product tags to show in the 2D Plans
tagsToHide	–	Array<num>	[...]	a list of product tags to hide in the 2D Plans
tagsToMeasure	–	Array<num>	[...]	a list of product tags to measure in the 2D Plans
roomsOnly	–	num	0 or 1	draws a plan for each room that contains products (default value: 1)
resol	–	num	1 - 1000	Resolution in PPI. (default value: 300)
scale	–	num	0 or 1	Scale of the plan when printed at the current resol (20 means 1/20 scale) (default value: 20)
imageWidth	–	num	0 or 1	Width of the 2D plans in pixels
imageHeight	–	num	0 or 1	Height of the 2D plans in pixels

Example

"plans2d": {
    "version": 2,
    "showInfoGrid": 0,
    "configs": [
        {
            "resol": 300,
            "scale": 20,
            "typePlan": "Top",
            "roomsOnly": 1,
            "showFronts": 1,
            "imageWidth": 2244,
            "imageHeight": 1772,
            "showFurniture": 1,
            "showNumbering": 1,
            "showWallDimension": 1,
            "showFurnitureDimension": 1
        }
    ]
},

widgets

The widgets attribute is used to configure the use of default widgets in the configurator. It contains a key for each supported widget in the configurator.

productSheet

Status	Type	Default value
Optional	object	false

Defines the configuration of the Product Sheet 🔗 default widget that is used for displaying product information.

It supports the following keys/values:

dimensions

Status	Type	Default value
Optional	boolean	true

Defines if the dimensions of the product are displayed or not.

price

Status	Type	Default value
Optional	boolean	true

Defines if the price of the product is displayed or not.

Example where the dimensions and price are disabled:

"productSheet": {
    "price": true,
    "dimensions": false
}

autoFillers

The autoFillers attribute is used to configure the use of automatic fillers in the configurator. Below are the supported keys for this object.

baseFillerIds

Status	Type	Default value
Optional	array of strings	[]

Defines the base filler ID that is inserted by the configurator when adding an automatic base filler (i.e. filler touching the floor). The setting must be defined as an array of IDs, and the first available filler (at the time of configurator startup) from this list will be used by the configurator.

topFillerIds

Status	Type	Default value
Optional	array of strings	[]

Defines the top filler ID that is inserted by the configurator when adding an automatic top filler (i.e. filler not touching the floor). The setting must be defined as an array of IDs, and the first available filler (at the time of configurator startup) from this list will be used by the configurator.

minWidth

Status	Type	Default value
Optional	number	25

Defines the minimum dimension of the fillers. For base fillers, it is the horizontal width (from a box to the wall). For top fillers, it is the verical width (from the top of the box to the ceiling).

maxWidth

Status	Type	Default value
Optional	number	200

Defines the minimum dimension of the fillers. For base fillers, it is the horizontal width (from a box to the wall). For top fillers, it is the verical width (from the top of the box to the ceiling).

features

The features attribute groups settings used to enable/disable specific features of the configurator.

emailService

Status	Type	Default value
Optional	object	false

Defines the availability of the "email" service in the case the configurator is set to save without user.

Example

"features": {
    "emailService": true
}

brandName

Status	Type	Default value
Optional	string	``

Defines the brand name to be displayed in legal text in the case the email service is set to true.

Example

"brandName": "Bryo"

projectLinkUrl

Status	Type	Default value
Optional	string	``

Defines the project link base url in the case the configurator is set to save without user.

Example

"features": {
    "projectLinkUrl": "https://bryo.fr/planner"
}

saveWithUser

Status	Type	Default value
Optional	boolean	false

Defines if the user has to be logged in to save his configuration or not (anonymous)

Example

"features": {
    "saveWithUser": true
}
